Parent Layer: Exposure to Wildfire-Related Mortality, RCP 8.5

Name: Modeled Fire Risk 2080-2099

Display Field: Fireshed_N

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: This data layer combines modeled future fire risk data produced by Anderegg et al., 2022 (https://doi.org/10.1111/ele.14018). This research modelled fire risk using monthly temperature, precipitation and climatic water deficit (CWD) derived from the TerraClimate dataset (SI Methods), a 12-month rolling average of US-average monthly temperature and precipitation to capture longer-term trends, as well as the National Forest Type Dataset fit to Monitoring Trends in Burn Severity data for moderate and severe fires. The raw fire risk data was separated from the combined risk estimate, and four twenty-year averages were then produced from the data: 1980–1999, 2000–2019, 2040–2059, and 2080–2099. The source data that was used can be downloaded here: https://doi.org/10.5281/zenodo.4741333. The resulting 20 year average data was then summarized to the Fireshed scale. The data were classified using the following breakpoints: Very Low (1): ≤ 0.000072% per yearLow (2): 0.000072–0.000494% per yearModerate (3): 0.000494–0.000825% per yearHigh (4): 0.000825–0.001562% per yearVery High (5): >0.001562% per yearThe Fireshed Registry is a geospatial dashboard and decision tool built to organize information about wildfire transmission to communities and monitor progress towards risk reduction for communities from management investments. Fireshed areas in the Fireshed Registry are approximately 250,000 acre accounting units that are delineated based on a smoothed building exposure map of the continental United States. This size was chosen to contain most (> 99%) of the large fires, with fire sizes generally smaller than 250,000 acres, although the largest extreme event fires can span multiple firesheds.These boundaries were created by dividing up the landscape into regular-sized units that represent similar source levels of community exposure to wildfire risk. Project areas are approximately 25,000 acre accounting units nested within firesheds. This data publication includes a geodatabase that contains for both fireshed and project areas: boundaries, size, total annual number of buildings inside and outside of the area exposed by wildfires ignited within the area (based on 2010 housing unit data and 2014 fuels conditions), and percent of the area that has been disturbed since 2014 (2015-2018). Additional information about the Fireshed Registry can be found here: https://www.fs.usda.gov/research/rmrs/projects/fireshedsSpatial Extent: CONUS

Copyright Text: Fire Risk data Authors: Oriana Chegwidden, William Anderegg, Grayson Badgley, Anna Trugman, Danny Cullenward, John Abatzoglou, Jeffery Hicke, Jeremy Freeman, Joseph Hamman Fireshed Authors: Cody R. Evers, Chris D. Ringo, Alan A. Ager, Michelle A. Day, Fermin J. Alcasena Urdiroz, Ken J. Bunzel, Funding for the Fireshed Registry was provided by the USDA Forest Service, State and Private Forestry.

Default Visibility: true

MaxRecordCount: 200

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.4225883301703952E7
YMin: 3127333.3163661193
XMax: -7580452.744658906
YMax: 6693850.461524523
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: RCP85_T3C
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 1
  Label: Very Low (≤ 0.0072% burn/yr)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [1, 133, 113, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 2
  Label: Low (0.0072 - 0.049% burn/yr)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [128, 205, 193, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 3
  Label: Moderate (0.0494 - 0.0825% burn/yr)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 245, 245, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 4
  Label: High (0.0825 - 0.15% burn/yr)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [223, 194, 125, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 5
  Label: Very High (>0.16% burn/yr)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [166, 97, 26, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Fireshed_N ( type: esriFieldTypeString, alias: Fireshed Name, length: 254 )
• REGION ( type: esriFieldTypeString, alias: Forest Service Region, length: 5 )
• Hx ( type: esriFieldTypeSingle, alias: Historical Fire Risk, 1980-1999 )
• RCP45_T1 ( type: esriFieldTypeSingle, alias: Fire Risk 2000-2019, RCP4.5 )
• RCP45_T2 ( type: esriFieldTypeSingle, alias: Fire Risk 2040-2059, RCP4.5 )
• RCP45_T3 ( type: esriFieldTypeSingle, alias: Fire Risk 2080-2099, RCP4.5 )
• RCP85_T1 ( type: esriFieldTypeSingle, alias: Fire Risk 2000-2019, RCP8.5 )
• RCP85_T2 ( type: esriFieldTypeSingle, alias: Fire Risk 2040-2059, RCP8.5 )
• RCP85_T3 ( type: esriFieldTypeSingle, alias: Fire Risk 2080-2099, RCP8.5 )
• HxC ( type: esriFieldTypeInteger, alias: Class of Historical Fire Risk, 1980-1999 , Coded Values: [1: Very Low (≤ 0.0072% burn/yr)] , [2: Low (0.0072 - 0.049% burn/yr)] , [3: Moderate (0.0494 - 0.0825% burn/yr)] , ...2 more... )
• RCP45_T1C ( type: esriFieldTypeInteger, alias: Class of Fire Risk 2000-2019, RCP4.5 , Coded Values: [1: Very Low (≤ 0.0072% burn/yr)] , [2: Low (0.0072 - 0.049% burn/yr)] , [3: Moderate (0.0494 - 0.0825% burn/yr)] , ...2 more... )
• RCP45_T2C ( type: esriFieldTypeInteger, alias: Class of Fire Risk 2040-2059, RCP4.5 , Coded Values: [1: Very Low (≤ 0.0072% burn/yr)] , [2: Low (0.0072 - 0.049% burn/yr)] , [3: Moderate (0.0494 - 0.0825% burn/yr)] , ...2 more... )
• RCP45_T3C ( type: esriFieldTypeInteger, alias: Class of Fire Risk 2080-2099, RCP4.5 , Coded Values: [1: Very Low (≤ 0.0072% burn/yr)] , [2: Low (0.0072 - 0.049% burn/yr)] , [3: Moderate (0.0494 - 0.0825% burn/yr)] , ...2 more... )
• RCP85_T1C ( type: esriFieldTypeInteger, alias: Class of Fire Risk 2000-2019, RCP8.5 , Coded Values: [1: Very Low (≤ 0.0072% burn/yr)] , [2: Low (0.0072 - 0.049% burn/yr)] , [3: Moderate (0.0494 - 0.0825% burn/yr)] , ...2 more... )
• RCP85_T2C ( type: esriFieldTypeInteger, alias: Class of Fire Risk 2040-2059, RCP8.5 , Coded Values: [1: Very Low (≤ 0.0072% burn/yr)] , [2: Low (0.0072 - 0.049% burn/yr)] , [3: Moderate (0.0494 - 0.0825% burn/yr)] , ...2 more... )
• RCP85_T3C ( type: esriFieldTypeInteger, alias: Class of Fire Risk 2080-2099, RCP8.5 , Coded Values: [1: Very Low (≤ 0.0072% burn/yr)] , [2: Low (0.0072 - 0.049% burn/yr)] , [3: Moderate (0.0494 - 0.0825% burn/yr)] , ...2 more... )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )
• Shape_Area ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

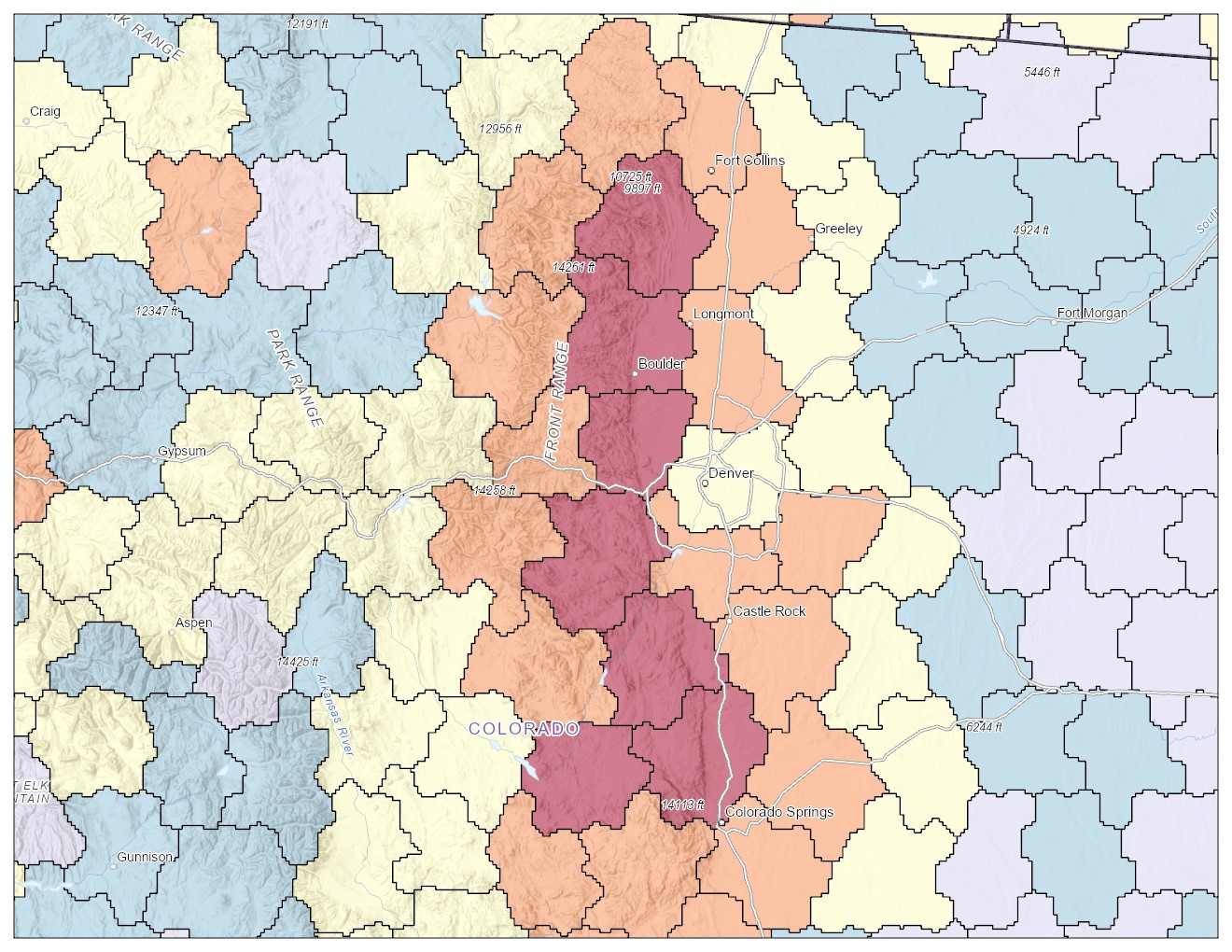

  Iteminfo   Thumbnail   Metadata
